500V PCBA 1.0AMP 1.27mm Heightening Box Header

1.27mm Heightening Box Header Straight Right Angle SMT Connector PCBA 500V 1.0AMP

SPECIFICATION:

1.Rated Current: 1.0AMP

2.Contact Resistance: 20mΩ Max

3.Withstand Voltage: 500V AC/DC

4.Insulation Resistance: 1000mΩ Min

5.Operation Tempature: -40℃-+105℃

Box header is usually composed of a square plastic socket and a number of neatly arranged square pins.Commonly used peripheral sizes are 1.27 pitch, 2.0 pitch, and 2.54 pitch. According to the difference in pitch, the diameter of the square pin header used is also changed accordingly. The contact surface between the bottom and the PCB board can be designed as SMT patch (as shown) or DIP 180 degrees.

Certifications:

Advantages:

1. All kinds of products passed RoHS,SGS,100% tested before delivery

2. Factory passed ISO9001:2008 and ISO14001:2004

3. Available for OEM/ODM order

4.Some plastic passed UL cerficated

5.Well-equipped testing facilities and strong technical force

6.Prompt delivery and competitive price and quality

7.Widely used in most of home appliances, computer, PCB, LCD and TV

8.Over ten years manufacture exprience

FAQ:

Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

1.27mm Heightening Box Header

1.0AMP Heightening Box Header

PCBA Right Angle SMT Connector

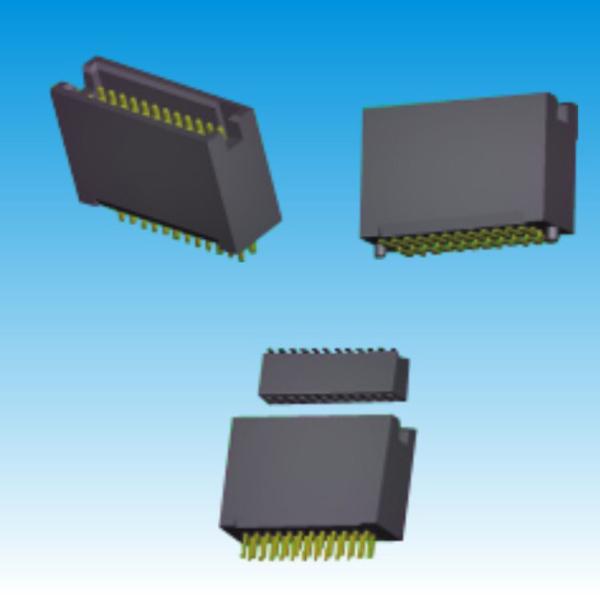

500V PCBA 1.0AMP 1.27mm Heightening Box Header Images
